37' Pacific Proa

by Russell Brown

featured in Wooden Boat Magazine
July/August, 1988, Issue #83

Photographs, text and video by Joseph Oster.
Location: Lake Tashmoo, Martha's Vineyard

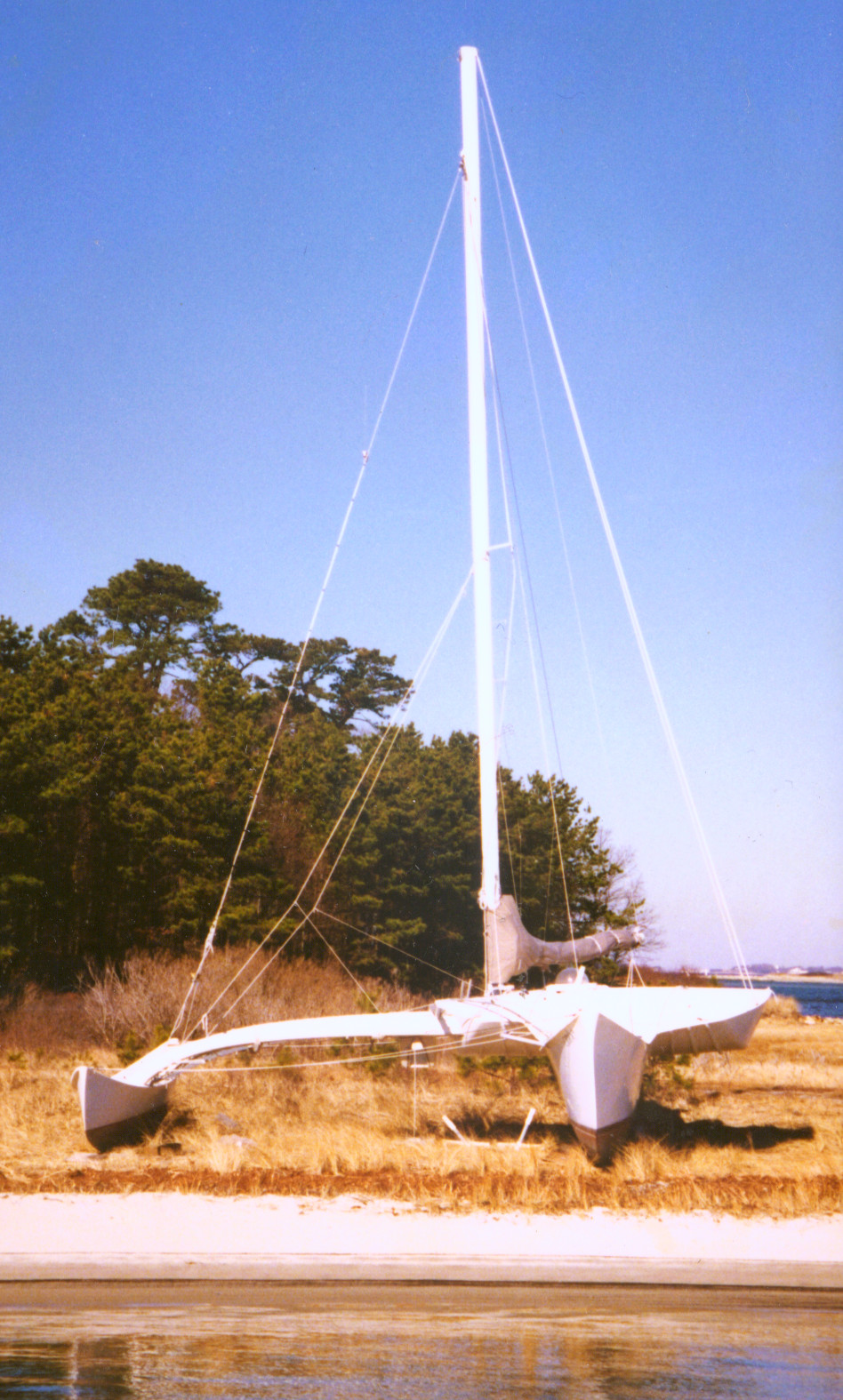

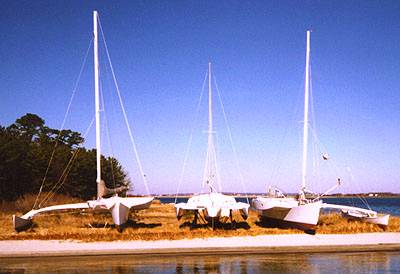

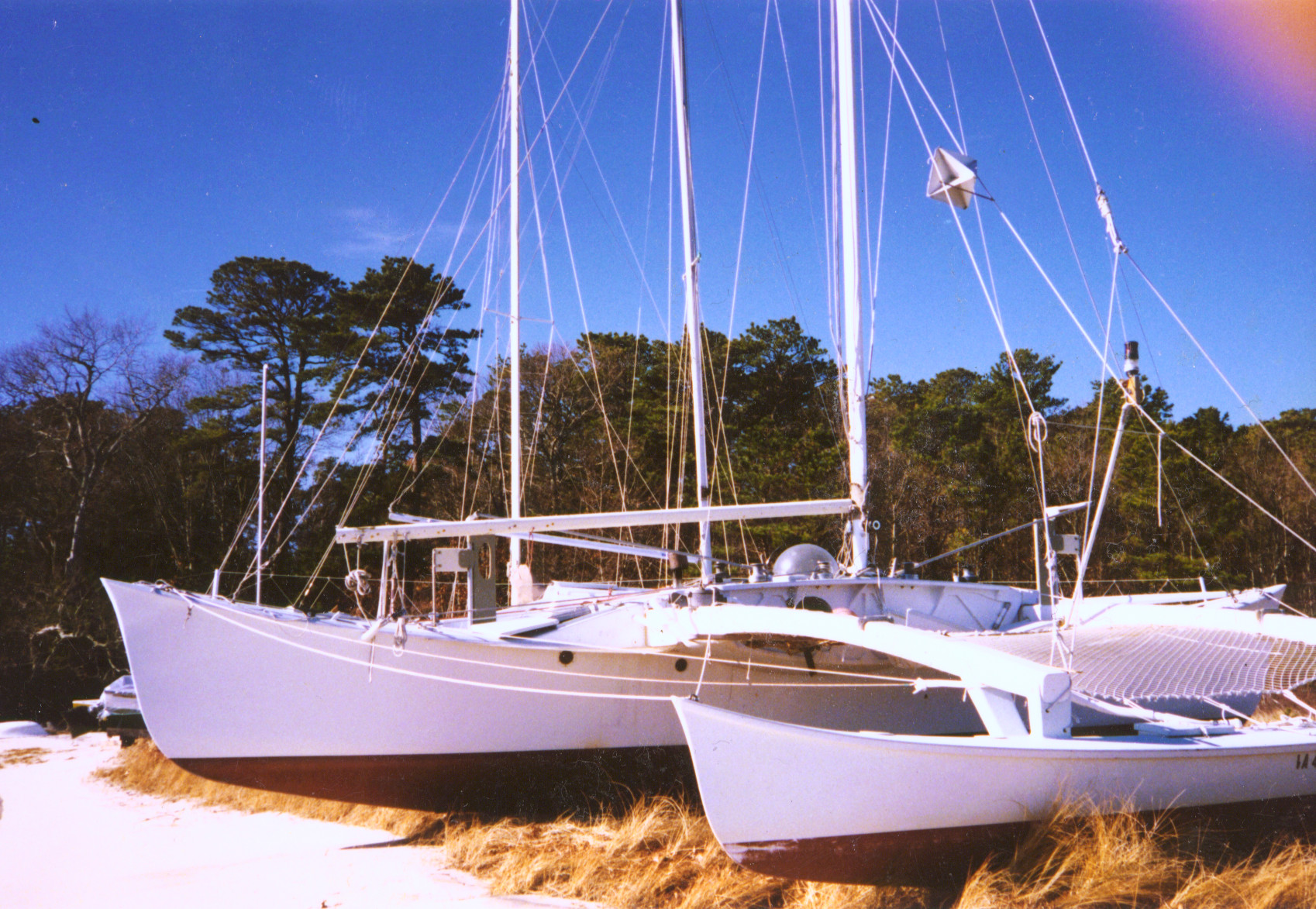

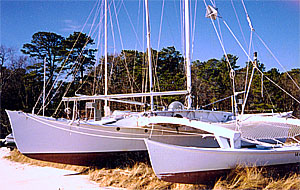

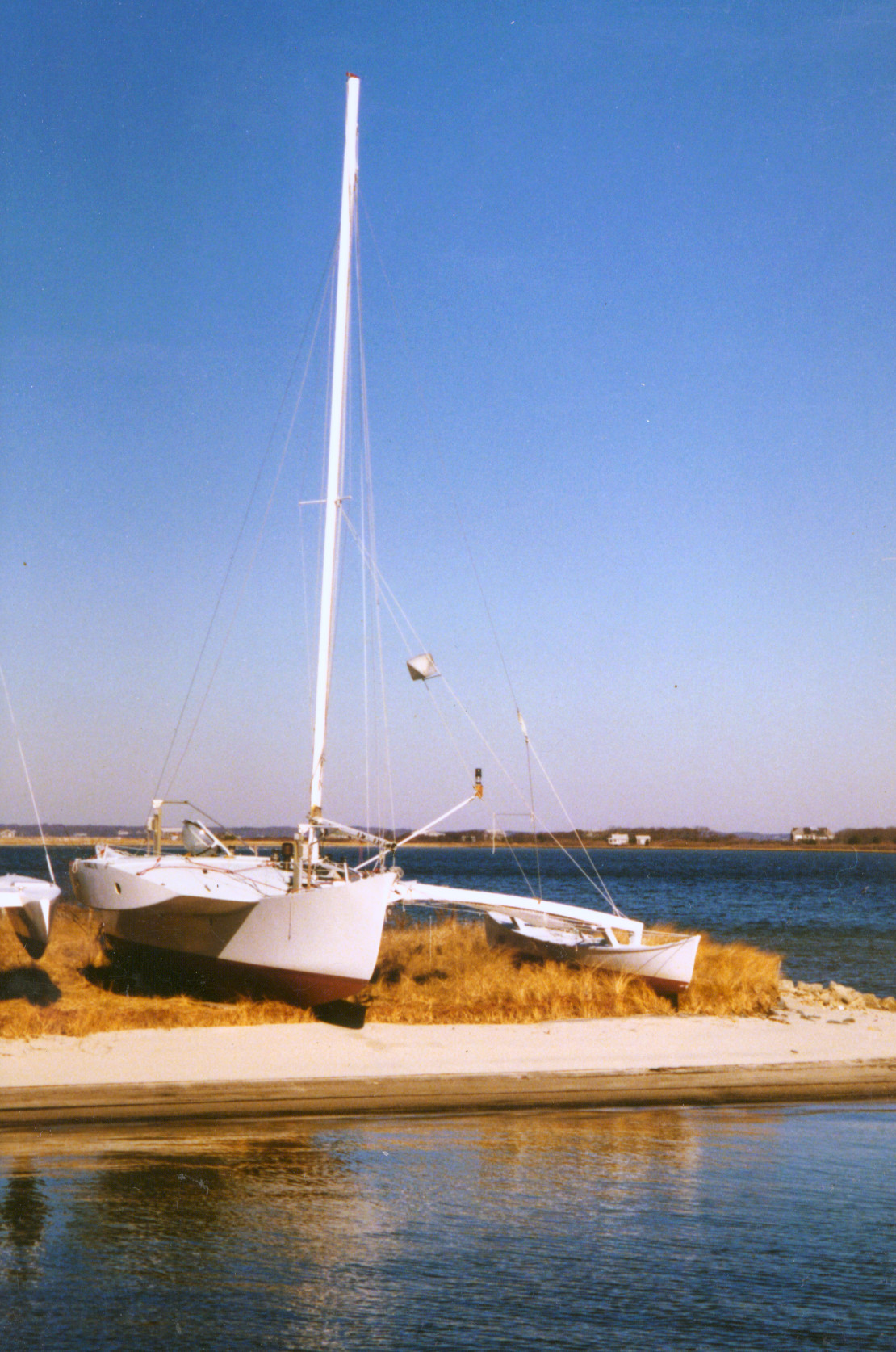

Hauled out with sister ship Cimba and a small Piver trimaran, Fall 1989.

Click each image for large view

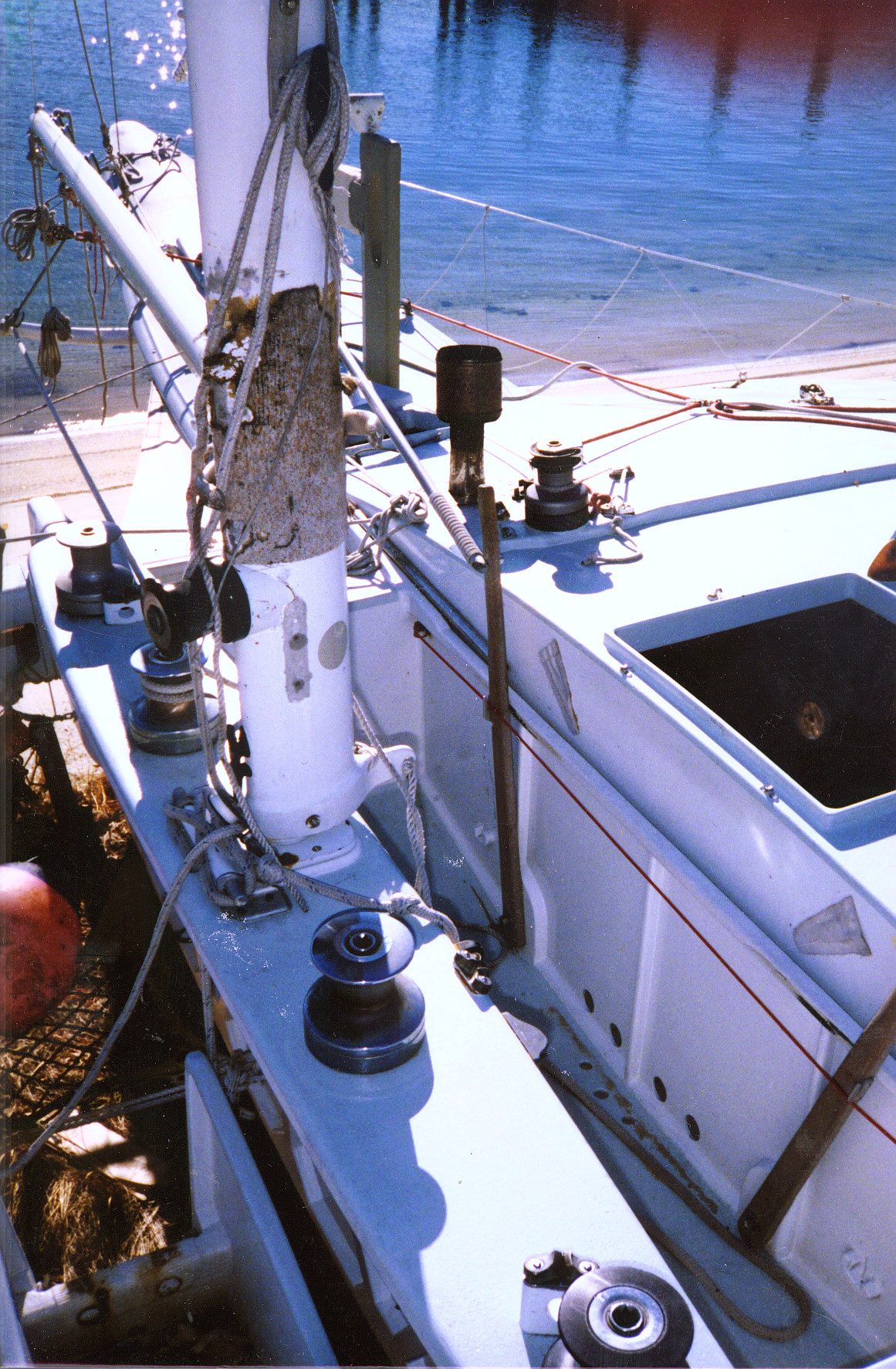

Helm Station

order back issue
  • A truss box beam suspended to weather between the crossbeams and supporting the mast base. All controls lead to this centralized location including rudder up/downhauls.
  • Two separate steering levers, each connected to respective rudders by aluminum poles. The rudder on the port bow is visible in the raised position (as it would be on port tack).
  • A continuous red line passes each steering lever and enters the interior where it is connected to a conventional electronic autopilot for tillers. The red line is normally engaged only to the aft tiller/rudder in the lowered position and easily disengaged from both.
  • Headsail halyards for each bow share the same winch on the mast.
  • A continuous mainsheet attached at each end to the end of the boom passes fore and aft around the mast base winches and leads through two movable fairleads at each end of the boat: 1) on a special spar that brings the boom parallel to the centerline (pictured in Helm Station photo) and 2) outboard to leeward for letting the boom out parallel to the crossbeams.
  • Carpet attached to mast with simple yoke on boom that rotates 180 degrees each tack.
  • Motor mount and fuel cans to weather of mast base; lowers 20 HP outboard to water.
  • Chimney for wood stove.

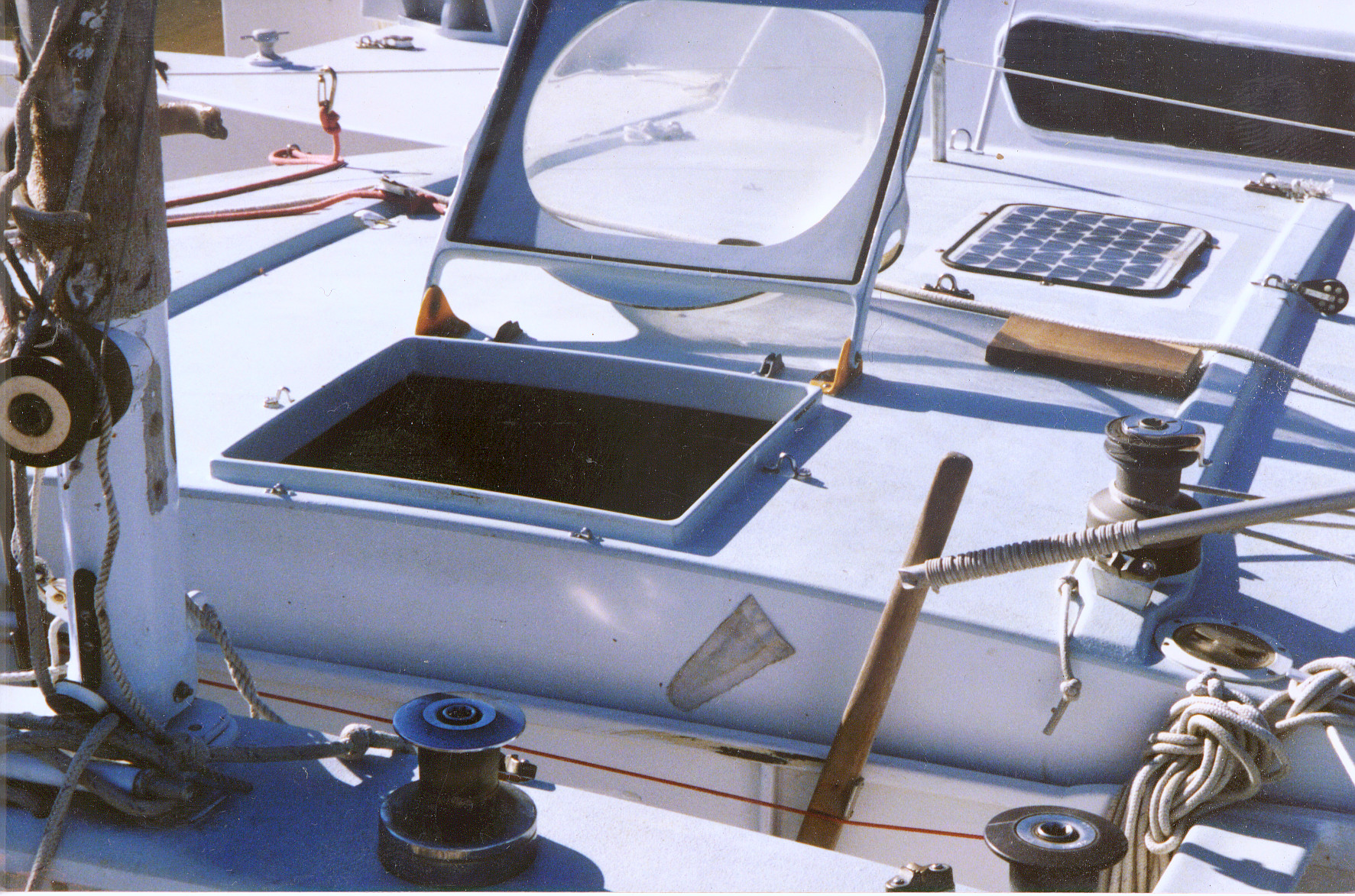

  • Knife pockets near hatch for cutting away jammed lines quick!

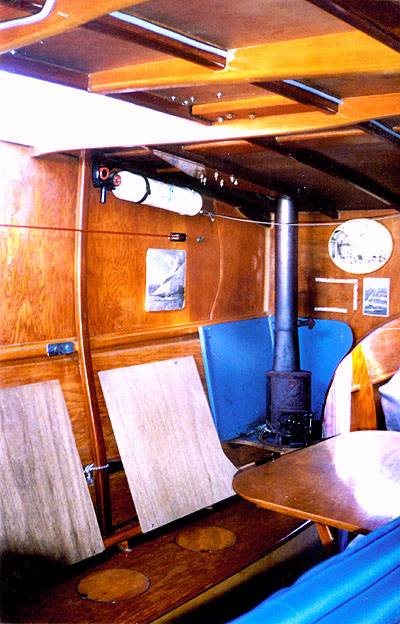

Wood Stove!
  • Below decks, a comfortable wood stove keeps things cozy through bitter New England winters.
  • The red line below the hatch and fire extinguisher attaches to the electronic autopilot (left of photo) and to the steering levers outside.
  • The bench seat has access hatches for storage below.
  • The table folds down against the leeward side of the boat (the blue air mattress is on the main double berth in the lee "pod").
  • The bulkhead beyond the table gives access to storage, head, etc.

Leeward Pod with double berth

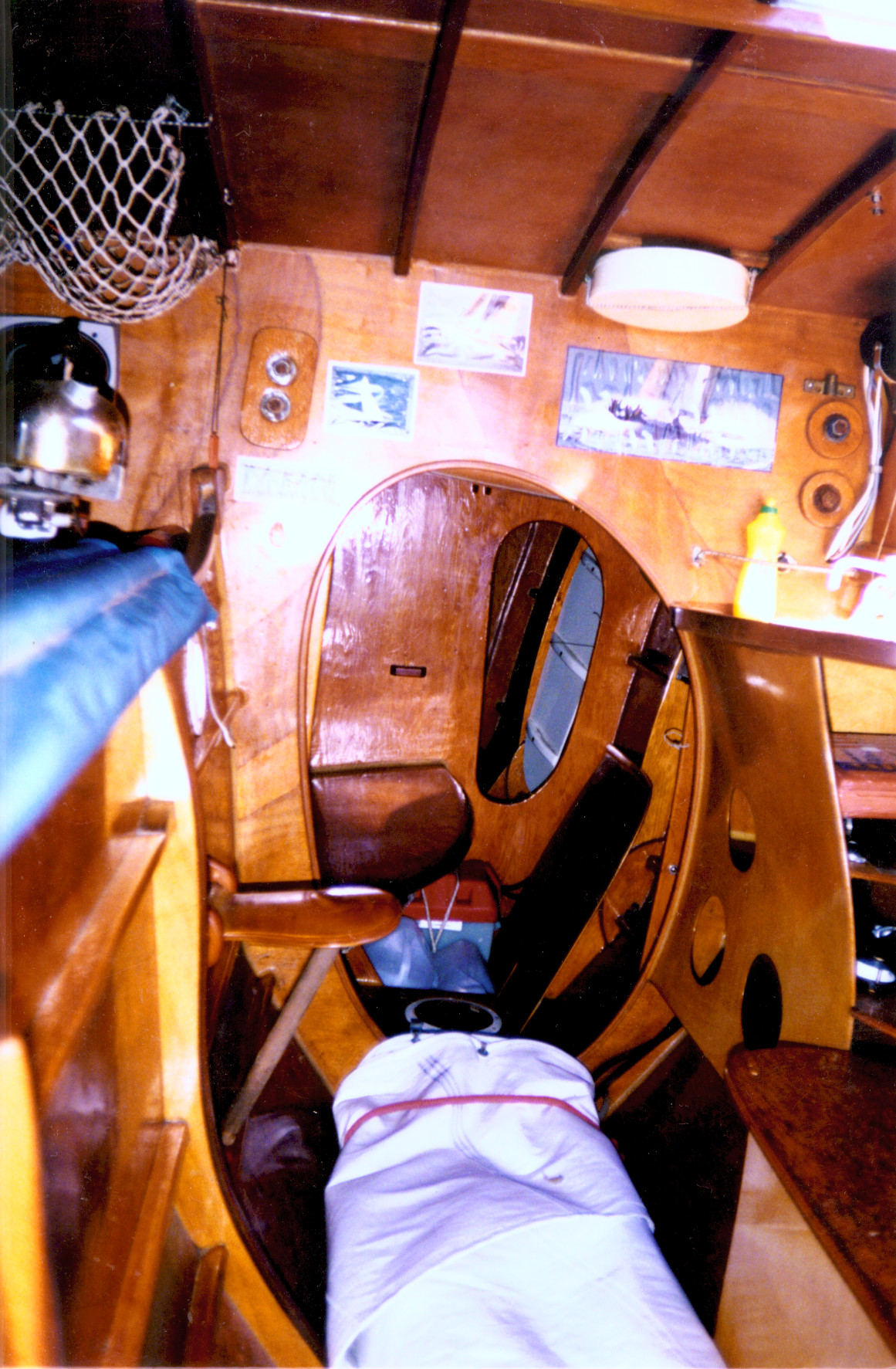

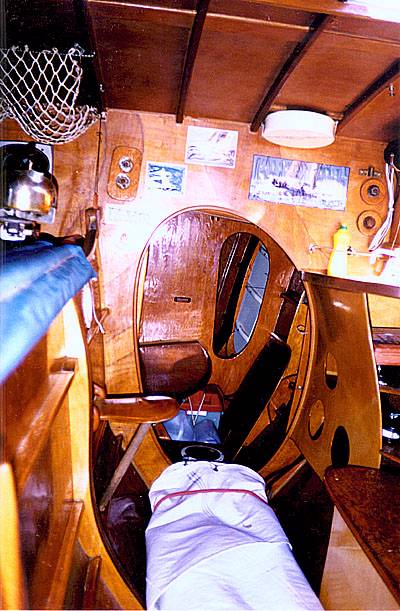

Main Hull
  • View towards starboard bow.
  • Double berth lee pod on left with stove (tea kettle) at one end.
  • Galley sink on right, below and "forward" of main hatch.
  • Sprout grower above sink.
  • Folding single seat attached to left (leeward) side
  • Navigation and comm station forward of main bulkhead, one of two primary bulkheads showing attachment bolts for crossbeams.
  • Smaller access hatch in forward bulkheads make bows watertight when under way.
  • Main sail stored on cabin sole for winter haulout.

KAURI on video!

V1 V2

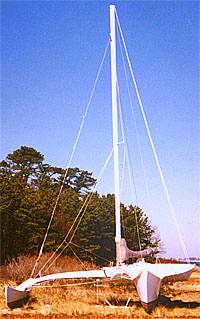

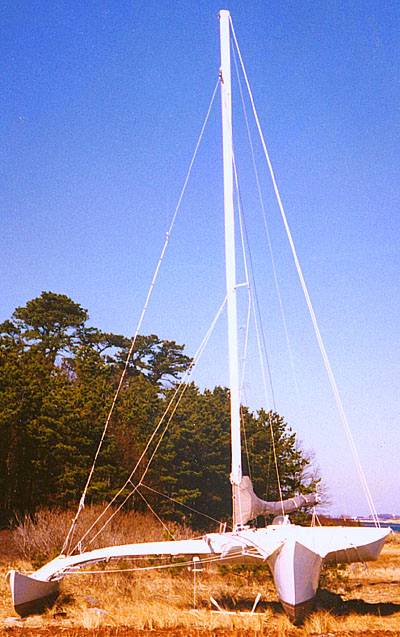

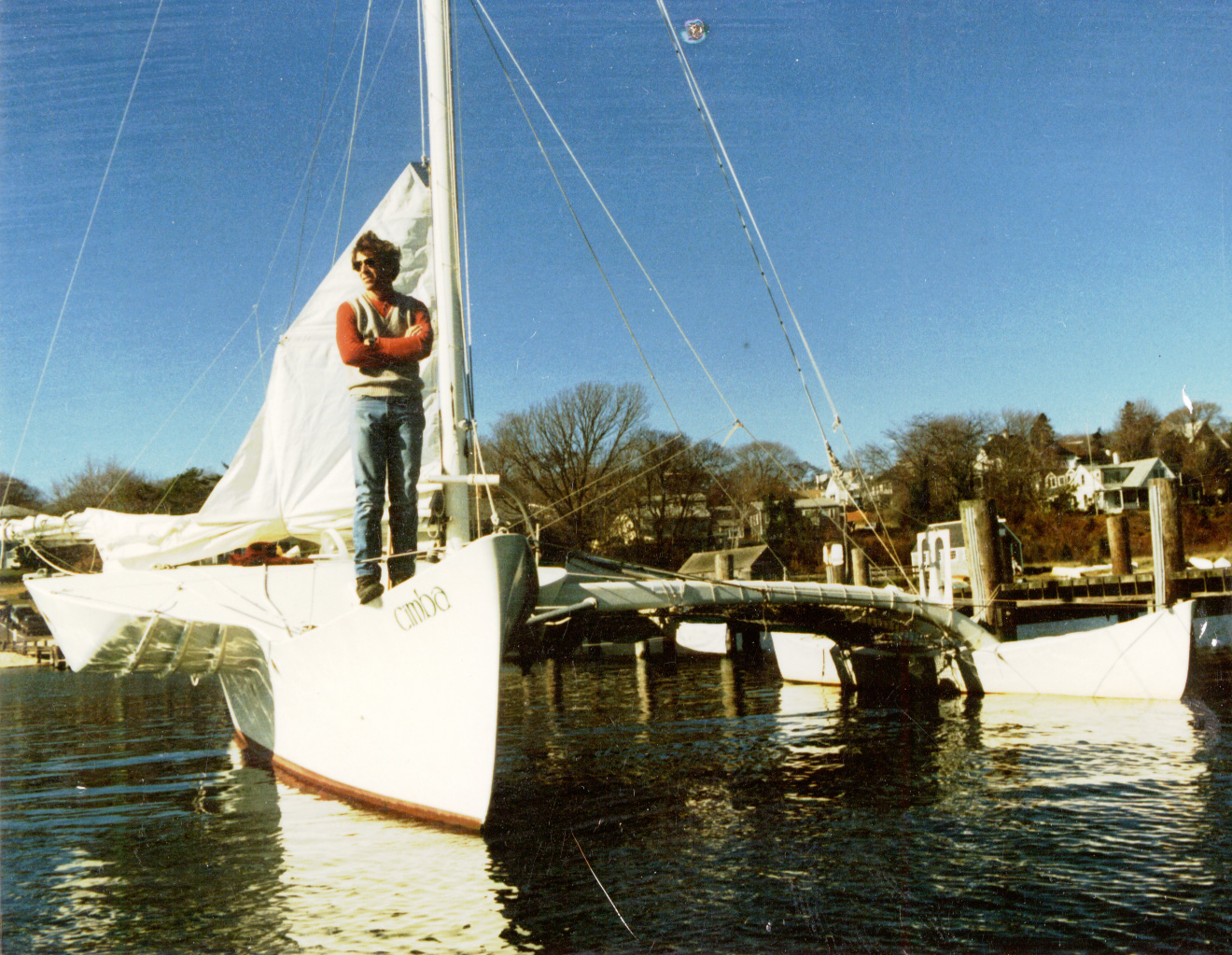

Sistership to Kauri

1320x1023, 653K

"But Dad, I don't think I want anybody else to have a boat like this.
I mean, it requires such a total commitment to such an oddball concept...
I just don't want to be responsible for sending other people to sea
in such a... Such a... Thing."
-- Russell Brown, Park It, Dad,
Chapter 18 of Jim Brown's "Among the Multihulls, Vol. 2"

JZERRO on video
Pacific Proa Jzerro in Port Townsend - September 2012
Jzerro underballasted and hard on it
Proa Jzerro September, 2011
sailing 17.8 knots on auto-pilot!
720p HD *posted May, 2011
sailing 17.8 knots on auto-pilot! & sailing past lighthouse *posted July, 2008 (not HD)
Jzerro in Port Townsend 2015, at 18 knots

Port Townsend Watercraft, Nesting Dinghies (details)


by Russell Brown
Other Proa Pages
NOTE: The "Flying Proa" or "Pacific proa" has a small ama to windward,
opposite that of the "Atlantic proa" with heavier hull to windward.
