Links to other Proa Web Sites Pacific Proa: Double-ended, bi-directional sailing multihull with main hull to leeward (~75% displacement) and small hull to weather (~25% displacement) Goes opposite direction when tacking!

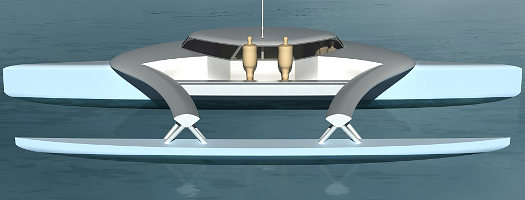

Spring, 2018 - interactive Sketchfab 3D viewer

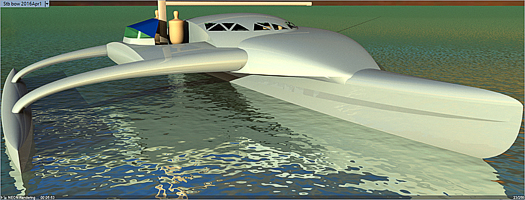

Spring Equinox, March, 2016 - interactive animation

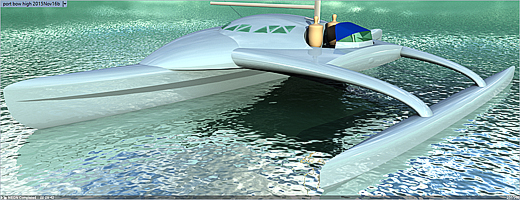

Grasshopper Salon/Coach, July, 2015 - interactive animation

Rhino CAD, April, 2014
Rhino CAD, August, 2014

Click any image for rotating, 360 ° view!

Performance cruisers ranging in length from seventy to ninety feet (21..26 meters), ranging in displacement from seven to eighteen tons.  Proa compared to Catamaran  Scalable Pacific proa design! Currently designing large multihulls inspired by the Flying Proas of Micronesia. Feet 69 90 120 Meters 21 26 36 Displacement 7-9 tons 15+ tons 22+ tons

large hull small hull Length 69 feet 38 feet Displacement 5.4 tons 1.8 tons Beam 4.0' 2.5' Draft 2.0' 1.5' D/L Ratio 18 at rest, 22 flying ama 33 at rest, 17 at 50% RM 7 to 9 tons total, 34' beam overall  Balanced Rig - Steering Details!

Marshal Isles Proas (270K)

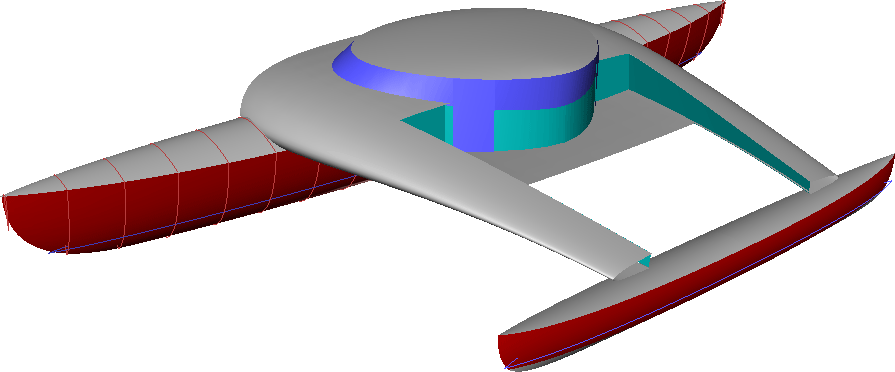

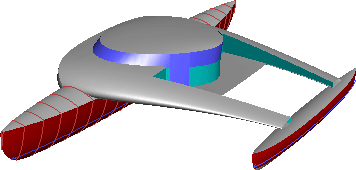

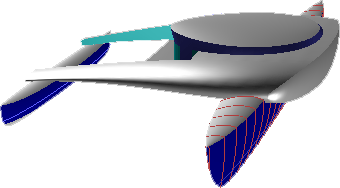

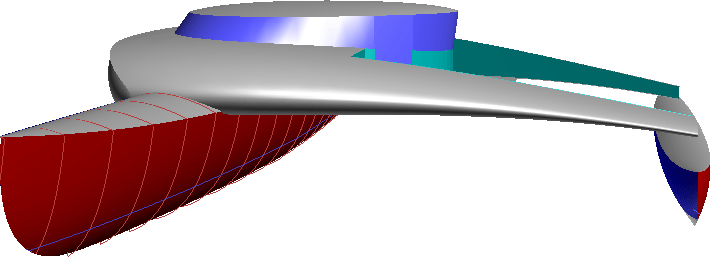

Versions of this design:		All 3D models created by Joseph Oster using MultiSurf by AeroHydro
1	2	3	4	5
